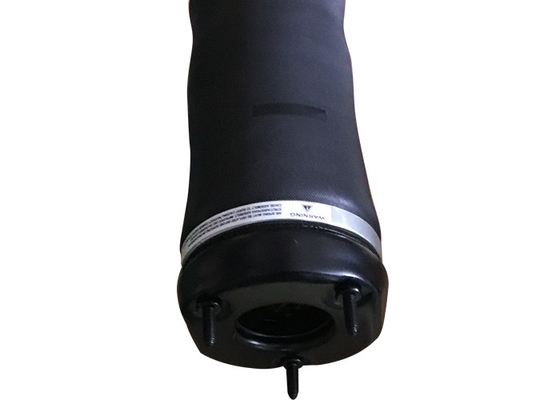

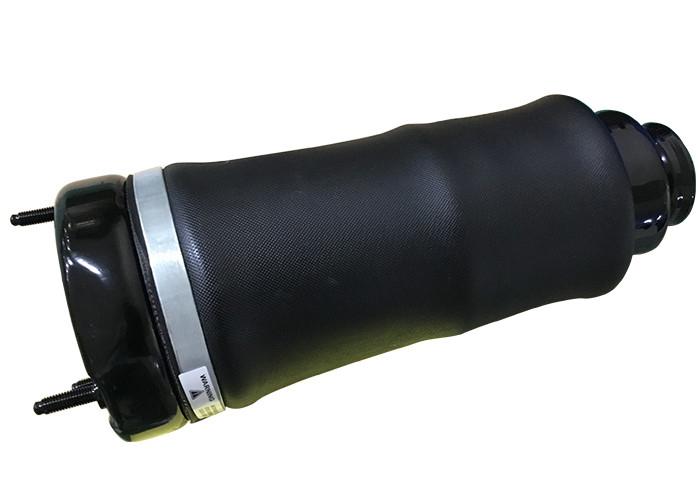

A2513203013 2513205613 Air Suspension Spring For Mercedess W251 Chassis R320 R350 R500

For Mercedes W251 R350 Front Air Ride Suspension Shock Absorber Component Kits Air Spring Bag A2513203013

• This brand new air spring fits for Mercedes-Benz W251 Front axle left & right side.

It replaces the original air spring of your vehicle and offers you a maximum ride comfort with high durability. Security, accuracy of fit .

• The product is 100% compatible with the original part.

Product Description
For Mercedes-Benz R-Class W251 R350 Front Air Ride Suspension Shock Absorber Component Kits Air Spring Bag A2513203013
Airsusfat air springs replace the original air springs of your vehicle and offer you maximum ride comfort with high durability. Security, accuracy and quality of the product match the original part.

This brand new air spring fits both left and right side For Mercedes-Benz R-Class W251/R350
Front Left/Right vehicles.
Airsusfat air springs are made of high-quality elastomer materials and covered by 12 months limited warranty .The rings on the air springs are crimped using a special technology for dependable operation and leak-free performance. They are known for their superior dynamic properties as well as their long life and reliable durability.

• Original Part No.:

   A2513203013/A2513203013

• Product Quality Assurance:

    1.Quality Warranty: 12 months

    2.How to guarantee your after sales service?

• Packing & Shipping Method

   Box Size: 38*17*17 cm

   Weight:  4.1 kgs/pcs

   Shipping Methods: By Sea,By Air,By Express

• Things to know about air spring:



     1.Air Spring Installation


1).Before you start installing air springs, make sure you have all the necessary tools and equipment

       to perform the repair safely.
2). Familiarize yourself with the suspension on which you are performing the repair by reviewing the

       manufacturers service guide.
3). If you are in doubt about something, ask for assistance from a qualified suspension specialist, the

        suspension manufacturer or the air spring manufacturer; This can save you a lot of time and

       aggravation later in the job



    2.Important tips to remember when installing a new unit


1).Check levelling valve, linkage and transmission parts for wear and damage and if necessary replace

     the damaged parts.
2).Check that the shock absorber for leakages and take a shock absorber test. A defective shock

    absorber must be replaced.
    Once the air lines are disconnected, check their entire length for cracks or other damage. Replace

    worn parts.
    With the air spring removed, other parts of the air suspension become more accessible. Check for

    wear or damage of the frame hangers, trailing arm bushings, torque rods, the trailing arms and the

    air spring mounts. When it is necessary, also replace parts.
3).Check bearing for air spring bellow for external damage, deformation, sharp edges and correct

    fastening.
4).Before installing the new unit, clean the air spring mounting plates to ensure proper attachment to

    the suspension.
5).Always use new attaching bolts for the installation and observe the tightening torques. Never use

    old bolts, because these can fall out.
6).Check the linkage of the levelling valve to see that it is functioning properly. Under load, the linkage

    should move from the neutral position up to the intake position. This lets air into the springs,

   which brings the arm back to the neutral position.That opens the exhaust valve, allowing air to

   escape until the arm returns to the neutral position. Then check the driving level.
