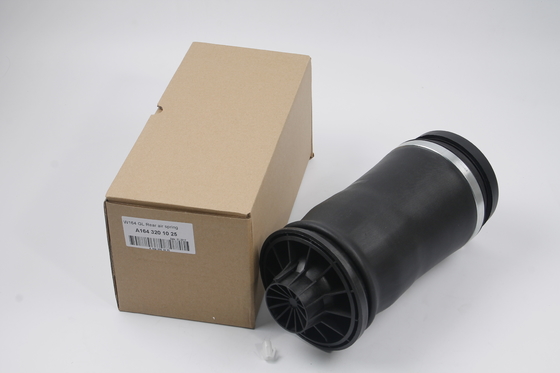

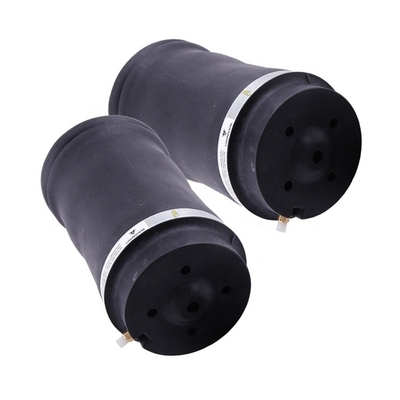

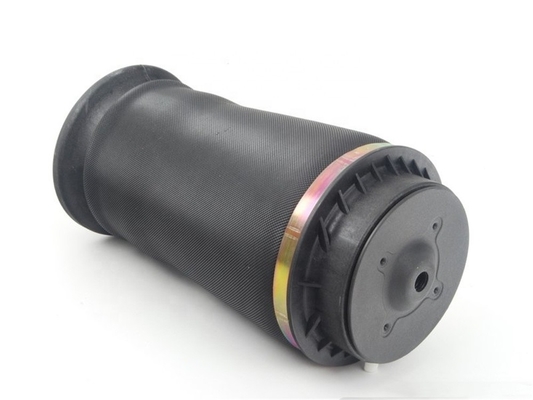

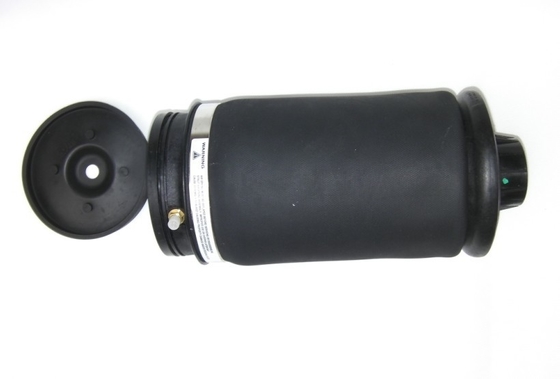

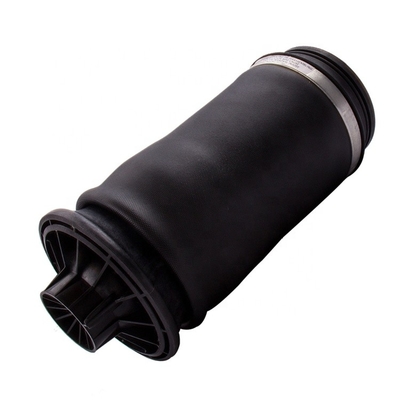

OE# A1643201025 Air Suspension Conversion Kits Rear Air Spring For Mercedes W164 GL 350 GL450

OE# A1643201025 Air Suspension Conversion Kits Rear Air Spring For Mercedes W164 GL 350 GL450


• This brand new air spring fits to Mercedes-Benz W164 GL350 GL450 rear axle left & right side.
It replaces the original air spring of your vehicle and offers you a maximum ride comfort with high durability. Security, accuracy of fit .

• The product is 100% compatible with the original part.


Description:




Can be installed on the following vehicles:




Packing & Shipping Method

Box Size: 38*17*17 cm
Weight: 2.5 kgs/pcs
Shipping Methods: By Sea,By Air,By Express

Things to know about air spring:

1. Air Spring Installation
1). Before you start installing air springs, make sure you have all the necessary tools and equipment
to perform the repair safely.
2). Familiarize yourself with the suspension on which you are performing the repair by reviewing the
manufacturers service guide.
3). If you are in doubt about something, ask for assistance from a qualified suspension specialist, the
suspension manufacturer or the air spring manufacturer; This can save you a lot of time and
aggravation later in the job

2.Important tips to remember when installing a new unit
1). Check levelling valve, linkage and transmission parts for wear and damage and if necessary replace
the damaged parts.
2). Check that the shock absorber for leakages and take a shock absorber test. A defective shock
absorber must be replaced.
Once the air lines are disconnected, check their entire length for cracks or other damage. Replace
worn parts.
With the air spring removed, other parts of the air suspension become more accessible. Check for
wear or damage of the frame hangers, trailing arm bushings, torque rods, the trailing arms and the
air spring mounts. When it is necessary, also replace parts.
3). Check bearing for air spring bellow for external damage, deformation, sharp edges and correct
fastening.
4). Before installing the new unit, clean the air spring mounting plates to ensure proper attachment to
the suspension.
5). Always use new attaching bolts for the installation and observe the tightening torques. Never use
old bolts, because these can fall out.
6). Check the linkage of the levelling valve to see that it is functioning properly. Under load, the linkage
should move from the neutral position up to the intake position. This lets air into the springs,
which brings the arm back to the neutral position.That opens the exhaust valve, allowing air to
escape until the arm returns to the neutral position. Then check the driving level.

About Delivery :
1. Please make sure your address and contact information is accurate and correct
2. We hope it arrives on time but since this is an international delivery, shipping time will be highly depended on the logistic company and local customers or duties. Thank you for your understanding.
3. In order to ensure you received your commodities with paying lower taxes, we will declare the custom invoice with lower valued, we do this for saving your money. The value do not mean the total you paid or anything else .Any import charges is the buyer’s responsibility.

Detailed Images:
